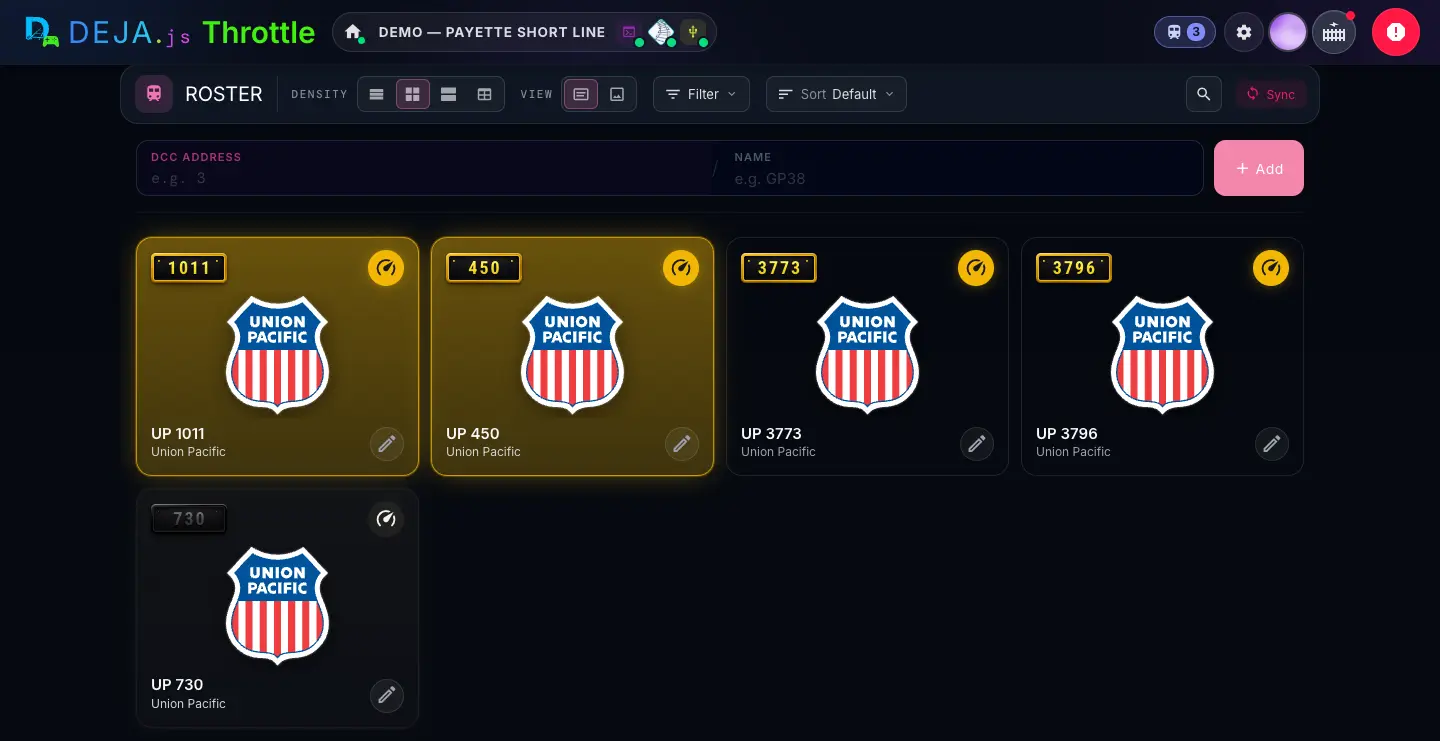

Locomotives.

Toolbar

On a narrow screen each control folds into an icon menu. Your choices are remembered on this device.

Marker 1DensitySegmented buttons

How much room each loco gets.Options: List (one row each) · Compact (tiles) · Comfy (bigger tiles with the road logo) · Table (Name, Road, Addr and Consist columns; tap a row to drive)Default: Compact

Marker 2ViewSegmented buttons

What fills the middle of each tile. Plate shows the railroad's logo when the loco has a roadname with one; Photo shows the loco's photo when it has one. Without either you get a line drawing of a steam, diesel or electric loco.Options: Plate · PhotoDefault: Plate

Marker 3FilterMenu

Narrow the roster by Roads: the railroads your locos actually carry, A to Z. Pick several to see any of them. The Filter button only appears once at least one loco has a roadname.

SortMenu

The order of the tiles.Options: Default (your own order) · Name · AddressDefault: Default

SearchButton → text field

The magnifier opens “Search roster...”. It matches loco names only, not addresses.

Marker 4SyncButton → menu

Sends your roster to the EX-CommandStation, or reads its roster in. Owner only — see The Sync menu below.

Quick-add bar

The fastest way to add a loco: an address, an optional name, and you're done. After you add one, the bar slides on to offer a photo, DejaBot or the full editor — see the next section.

Marker 5DCC ADDRESSNumber field

The loco's decoder address, a whole number from 1 to 9999. Press Enter or Tab to jump to the name.

Marker 6NAMEText field

What the roster and throttle call it, e.g. “GP38”. Leave it blank and it becomes Loco 3 (with your address). Press Enter to add; Backspace in an empty name takes you back to the address.

AddButton (＋)

Adds the loco to the roster right away, as a diesel with onboard sound and the standard sound-loco functions (headlight, bell, horn and so on). You can change any of that in the editor. Stays grey until the address is valid.

Each loco tile

Number plateDisplay

The loco's address. DC locos are marked on the plate.

DriveSpeedometer button

Opens a throttle for this loco, ready to drive. Locos you already have a throttle open for show their tile filled with the loco's colour; the rest stay dark.

Name and roadnameDisplay

The name you gave it and its railroad, under the art.

EditPencil button

Opens the loco editor. You can also long-press a tile.

Finish setting it up

Three choices in one box, plus Skip.

Photo · UploadButton

Add a photo of the loco next. Opens the photo step.

Identify · Ask DejaBotButton

Describe the loco in a few words and let DejaBot fill in the editor. Opens the Identify step.

Details · EditButton

Go straight to the full loco editor and fill it in yourself.

SkipButton

Leave it as it is. The bar shows the Added step.

Photo step

‹Back button

Back to the three choices.

Photo · <name>Button → file picker

“Tap to choose a photo”, then it shows “Uploading…”. Photos over 10 MB are turned away — pick a smaller one.

UploadButton

Same as tapping the field. Once the photo is saved on the loco, you land in the editor with DejaBot already looking at it.

Identify step

‹Back button

Back to the three choices.

Identify · tell DejaBot about itText field

A few words about the loco, e.g. “Kato SD70ACe, UP, LokSound”: the maker, model, railroad and decoder are all useful. Press Enter to ask.

AskButton (↑)

Opens the editor and asks DejaBot once with your words. Reloading or going Back won't ask again.

Added

✓ AddedDisplay

The new loco's plate and name.

＋Button

Add another loco — the bar goes back to the address.

EditButton

Opens the loco editor.

ThrottleButton

Opens a throttle for the new loco, ready to drive.

Sync is greyed out (“Requires a connected EX-CommandStation”) until your DEJA Server is running and your EX-CommandStation is connected. A spinner shows while it works, and the result arrives as a message at the bottom of the screen.

Sync roster to EX-CommandStationMenu item

Sends every loco in your roster to the EX-CommandStation. The line under it counts them. Greyed out while the roster is empty.

Import roster from EX-CommandStationMenu item

Asks the EX-CommandStation for its roster and brings those locos into DEJA.

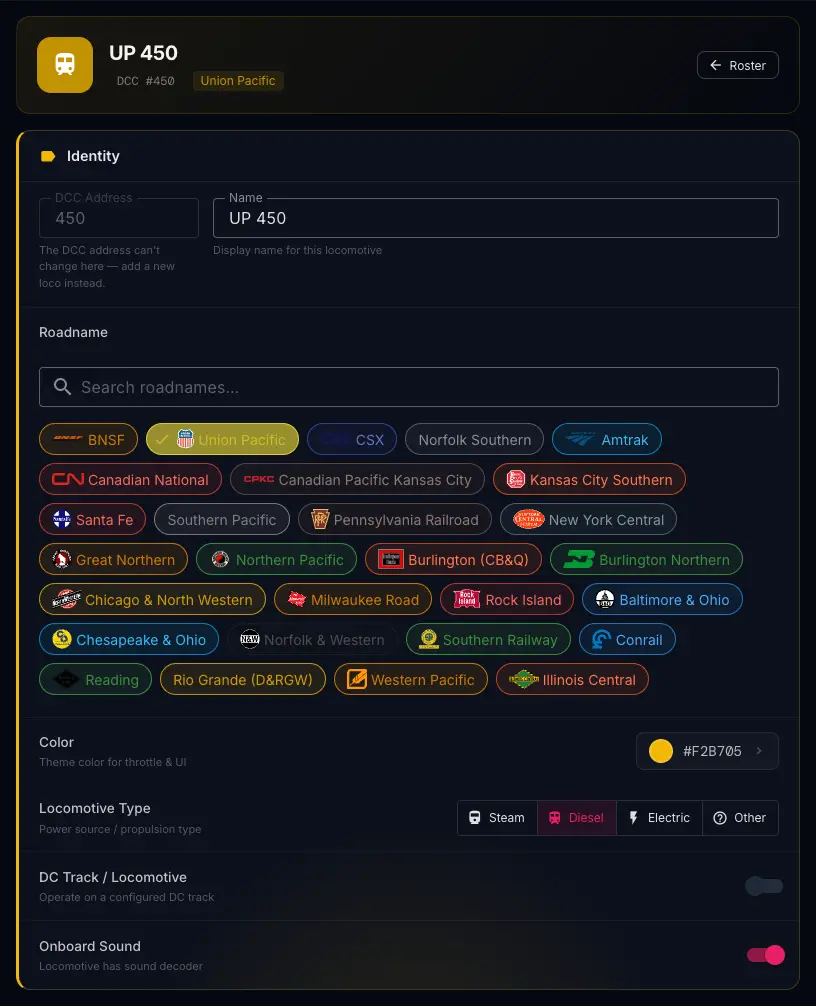

Identity

Marker 1DCC AddressNumber field · locked

The decoder address, 1 to 9999. It's fixed once a loco exists: “The DCC address can't change here — add a new loco instead.” When DC Track / Locomotive is on, the label reads DC Address and means the address of your DC track in DCC-EX.

Marker 2NameText field

The display name for the roster and the throttle, e.g. “GP38”.

Marker 3RoadnameSearch + chips · pick one

The railroad the loco is painted for. Type in “Search roadnames…” to narrow the 77 railroads, then tap a chip. Tap the chosen chip again to clear it. The road's logo shows on the loco's tile in Plate view and in the Roads filter.

Marker 4ColorColour picker

The loco's colour on its throttle and tile. Tap it for the named presets, your tag colours and a custom colour.Default: Pink on a new loco

Marker 5Locomotive TypeSegmented buttons

What powers it. Sets the line drawing on its tile when there's no photo or logo.Options: Steam · Diesel · Electric · OtherDefault: Diesel, if you leave it unpicked

Marker 6DC Track / LocomotiveSwitch

Turn on for a DC loco run on a track your EX-CommandStation is set up to drive as DC. The address above then means that track.Default: Off

Marker 7Onboard SoundSwitch

Whether the loco has a sound decoder. On a new loco, the function map follows this switch until you edit the functions yourself: sound-loco defaults when it's on, headlight only when it's off. A loco without onboard sound also gets DEJA's system sounds on its throttle pad, from its sound profile (see the Sounds guide).

New Locomotive

Adding a loco with the full form uses this same editor, titled New Locomotive — “Add a loco to your roster”. The differences:

DCC AddressNumber field · required

Open to type in (hint “2 or 4-digit decoder address”). If the address is already in your roster it stops you: “Address 3 is already in your roster — edit that loco instead.”

Onboard SoundSwitch

Starts off, so the function map starts as headlight only.

Add LocomotiveButton

Takes the place of Save. There's no EZ Consist or Delete until the loco exists.

The panel

On a wide screen DejaBot sits in a panel on the right; the arrow in its header folds it away, and it remembers. On a phone it's a pill pinned to the bottom of the editor — tap it to open the same panel as a sheet, ✕ to close it.

DejaBotHeader + status line

Says what it's doing: “Add a photo or a few details and I'll identify this loco.”, then “Want me to identify this loco?” once it has something to go on, a rotating “Taking a close look…” while it thinks, and “Identified · high confidence” (or medium, or low) when it answers. Offline, it says “I need a connection to identify.” On a phone, the pill shows “3 suggestions · tap to chat” while suggestions are waiting.

IdentifyButton

Asks DejaBot to identify the loco from whatever the form has: the photo, the name, the roadname, the details. It needs at least one of those. Uploading a new photo makes DejaBot offer — it never calls the AI by itself.

Does it have onboard sound?Buttons

If you haven't said yet, DejaBot asks first — “It helps me map the functions.” Answer Yes, No or Not sure.

The answer

Result cardDisplay

A confidence chip and a short summary of what DejaBot thinks the loco is. Show assumptions lists the guesses it made along the way. If something went wrong you'll see a warning with Retry.

suggestions on the form · Accept allBar + button

Counts the suggestions waiting on the form. Accept all takes every one in a single tap. On a phone, Accept all sits on the pill.

Function mapCard + Accept

A suggested F0–F31 map for the decoder DejaBot found, e.g. “LokSound 5 · 12 functions”. Accept puts it in the Functions section. If you've already set up your own map it says “replaces your custom map” — and Accept all leaves your map alone.

DejaBot asksChips

Up to three follow-up questions when it wants to be surer. Tap one to copy it into the message box, then answer it.

Suggestions on the fields

Each field DejaBot has a value for turns into a dashed cyan row until you decide. When it would replace something you typed, the old value is struck through beside the new one.

✓Accept button

Puts the suggested value in the field.

✕Dismiss button

Throws the suggestion away and keeps what was there.

The suggested valueTap

Accepts it and puts your cursor in the field so you can tweak it.

Fields DejaBot can fillReference

Name, Roadname, Color, Locomotive Type, Onboard Sound, Manufacturer, Model, Decoder, Description, About the Prototype and About the Model — and the DCC Address on a new loco.

Talk to DejaBot

Tell DejaBot more about this loco…Text box

Add anything that helps: “it's the Kato one”, “ESU decoder”, “Union Pacific, 1970s”. DejaBot answers with updated suggestions.

Voice inputMicrophone button

Speak instead of typing, where your browser supports it. Your words appear in the box; nothing is sent until you tap Send.

SendButton

Sends your message.

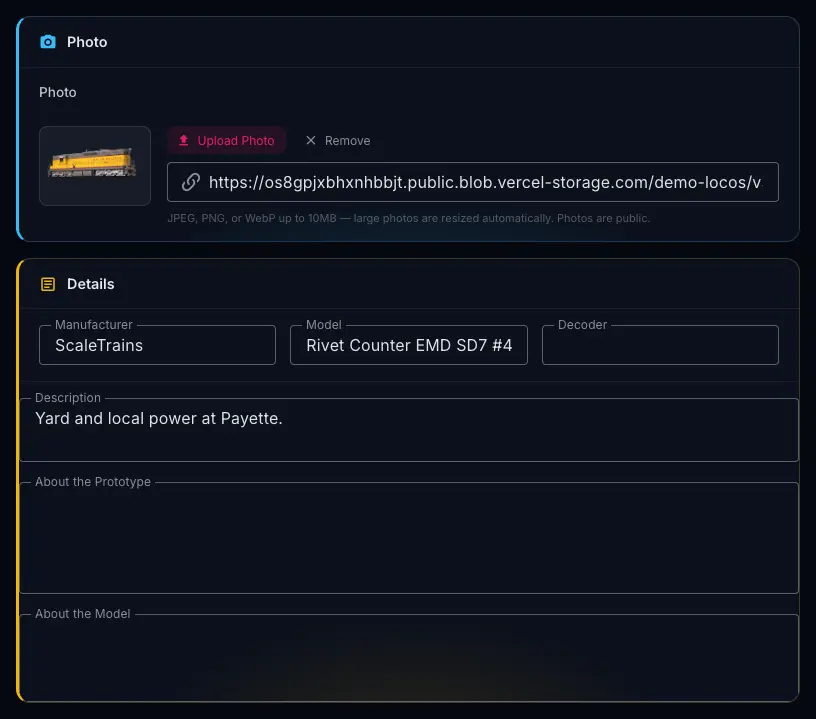

Marker 1Upload PhotoButton → file picker

A JPEG, PNG or WebP up to 10 MB; big photos are resized for you. It shows on the loco's tile in Photo view and on its throttle. Photos are public, so don't upload anything private.

RemoveButton

Takes the photo off the loco. Shown once there is one.

…or paste an https:// image URLText field

Use a picture that's already online instead of uploading one. It must start with https://.

Details

DejaBot can fill all of these. They're for you and your crew; they don't change how the loco runs.

Marker 2ManufacturerText field

Who made the model, e.g. “ScaleTrains”.

Marker 3ModelText field

The model or product line.

Marker 4DecoderText field

The decoder fitted, e.g. “LokSound 5”.

Marker 5DescriptionText box

A line or two about this loco on your layout.

Marker 6About the PrototypeText box

Notes on the real locomotive it's modelled on.

Marker 7About the ModelText box

Notes on the model itself: weathering, upgrades, quirks.

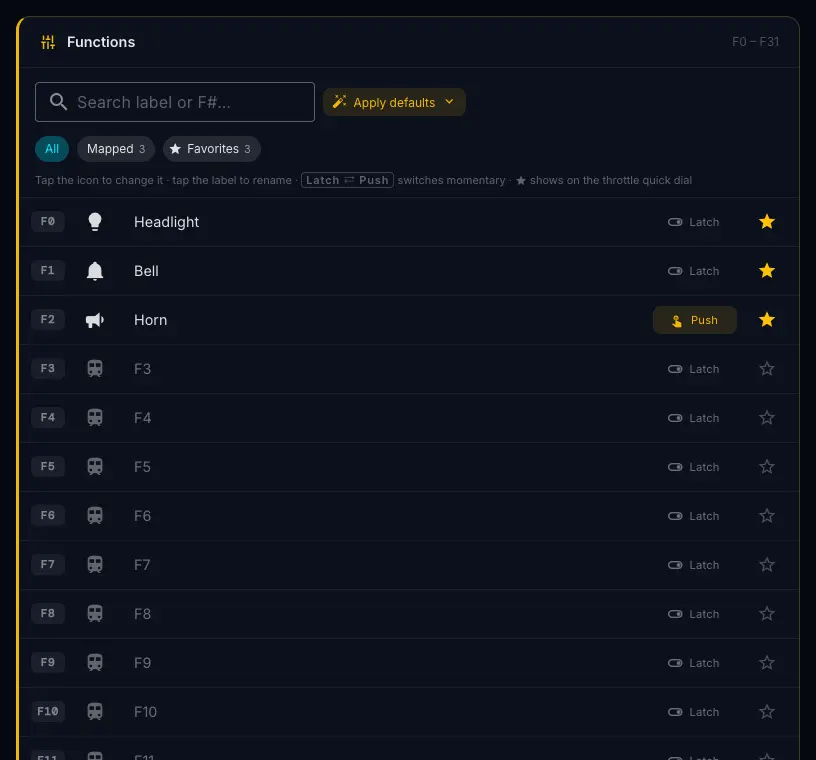

Toolbar

Search label or F#…Search field

Find a function by its name or number.

Marker 1Apply defaultsMenu

Replaces the whole map with a ready-made one.Options: Sound loco defaults — F0 Light, F1 Bell, F2 Horn, F3 Coupler, F4 Dyn Brake, F5 Dim Lights, F6 Cab Light, F8 Mute, F9 Start-Up, all on the quick dial · Basic loco defaults — headlight only

Marker 2All · Mapped · FavoritesFilter chips

Show every function, only the ones you've named, or only the quick-dial ones. Each shows a count.Default: All

Each function row

F0 … F31Display

The function number on the decoder.

IconButton → icon picker

Tap to choose the icon shown on the throttle button. The picker has a search, No icon, and 20 icons: light, bell, horn, wifi, coupler, fan, brake, station, mute, quiet, sound, track, air, announce, dim, whistle, chuff, steam, injector and engine.

LabelTap to rename

The function's name on the throttle. Tap it to type a name or pick a common one; Esc cancels. Clear it and the name goes back to its F-number.

Marker 3LatchToggle

Tap on, tap off — for things that stay on, like the headlight.

Marker 4PushToggle

Momentary: on only while you hold the button — for the horn, the bell or the coupler. Tap the toggle to switch between Latch and Push.

★Star button

Puts the function on the throttle's quick dial (“Add to throttle quick dial”).

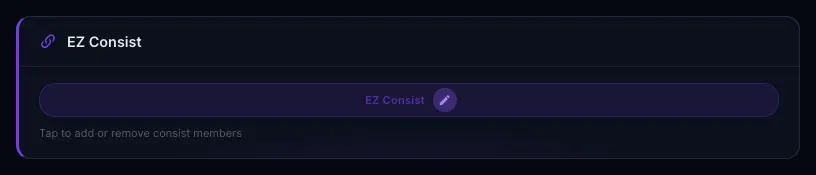

EZ Consist

EZ ConsistBar → dialog

“Tap to add or remove consist members.” Once the loco has a consist, the bar shows the lead and each member with an arrow for the way it faces.

The EZ Consist dialog

“Software-based consisting by DEJA”. The loco you're editing is the lead.

Lead LocomotiveCard

The loco you're editing. Drive this one.

Member cardsCards · tap to open

Each member, with “Forward” or “Reversed” and its trim. Tap one to adjust it.

FlipButton

Reverses the member — for a loco running backwards in the train.

Trim − / +Buttons

Nudges this member's speed up or down so it keeps pace with the lead.

RemoveButton

Takes the member out of the consist.

+ Add LocomotiveButton

Opens Add to Consist.

Add to Consist

Search by name, address, or road...Search field

Find the loco to add.

◀ Fwd · Rev ▶Buttons on each loco

Adds that loco facing forward or reversed. Locos already in the consist are dimmed (“Already in consist”).

CancelButton

Back to the Roster without saving. DejaBot's suggestions and function edits are dropped.

SaveButton

Writes everything on the page — your typing, any suggestions you accepted and the function map — and returns to the Roster. On a new loco it reads Add Locomotive.

Delete locomotiveButton → confirm

“Remove UP 450 from the layout — This can't be undone.” It asks once, right there: Cancel or Delete. Its throttle goes with it.
